What Is the Atlas-C1-A?

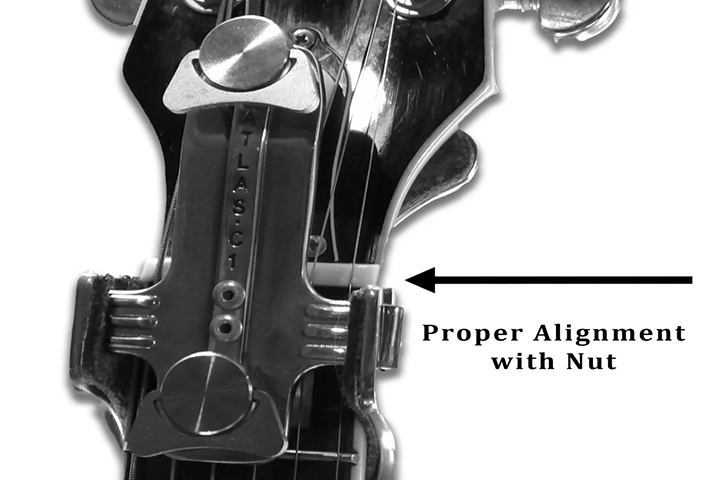

The Atlas-C1 -A is the first variant in our product line. Each Atlas support system is precision-engineered from stainless steel designed to counteract the 130–140 lbs. of string pressure typically exerted on the vulnerable headstock/neck junction of all (3-on-3) six-string guitars tuned to standard pitch (440Hz). When properly fitted, the Atlas-C1 ensures a net force of zero—achieving static equilibrium exactly where it’s needed on the instrument—providing unparalleled protection. Innovative design for a perfect fit The Atlas-C1 is designed to accommodate all (3-on-3) six-string guitars with nut widths up to 50mm and break angles from 10 to 28 degrees. Patented and trademarked, this tool is simple to use—requiring only finger-tightening to secure it in place. There is no need for excessive force or additional tools, as the Atlas-C1 works flawlessly with minimal effort. Prevent damage before it occurs .To understand the kind of damage the Atlas-C1 is designed to protect against, click here: Caution : disturbing images.

How Does It Work?

Stringed instrument designs with headstock pitched break angles are subject to high pressure and constant forward directional force right at the vulnerable headstock/neck region when tuned to pitch, typically 440Hz, and a pressure of 135 lbs. give or take a few pounds lbs. creating a condition known as "loading" . This pressure is focused directly on the weakest point of the neck and why they break in a forward trajectory. To put this into perspective, imagine picking up, simultaneously two 60-pound sacks of concrete and a bag of sand as a topper! This is the equivalent of the force your guitar is constantly enduring . When you consider this reality, it becomes clear that guitars by design are prone to damage and must endure and counter that immense pressure at all times. Our guitars deserve the the best protection available. Over time, continuous force can lead to other unintended structural defects. The headstock/neck junction may warp, twist or bow depending on how and where the instrument is stored and cared for. The Atlas-C1 is the ultimate solution for this issue. The Atlas -C1 redefines guitar care . An invaluable and essential tool that provides a lifetime of protection saving you both time and money.

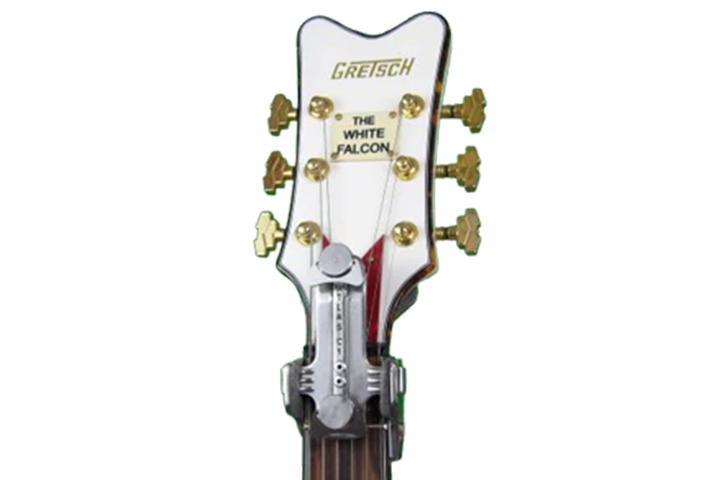

Guitar Headstock Support and protection tool Atlas-C1

The Atlas-C1 stabilizes the weak head-neck junction of a guitar by applying an equal opposing force to the string tension while the instrument is strung to pitch and acts as a proactive guardian at all other times. Using the Atlas-C1 significantly reduces the risk of damage from accidents or mishandling. Transporting a stringed instrument can be risky, even under controlled conditions, but even then, accidents happen. By using the Atlas-C1 you can greatly reduce the probability of damage through a proactive approach to instrument care, safeguarding it wherever you go.

Why Is It Called Atlas-C1?

In Greek mythology, the Titan Atlas symbolizes strength and endurance. Similarly, in human anatomy, the Atlas (C1) vertebra plays a crucial role in stabilizing the skull at the top of the spine, providing vital support for the head and the neck .The Atlas-C1 serves a similar purpose for your guitar by supporting the vulnerable headstock-neck junction of stringed instruments. It delivers targeted support in this critical area, offering unparalleled protection to the headstock/peghead of most 3-on-3 six-string instruments.

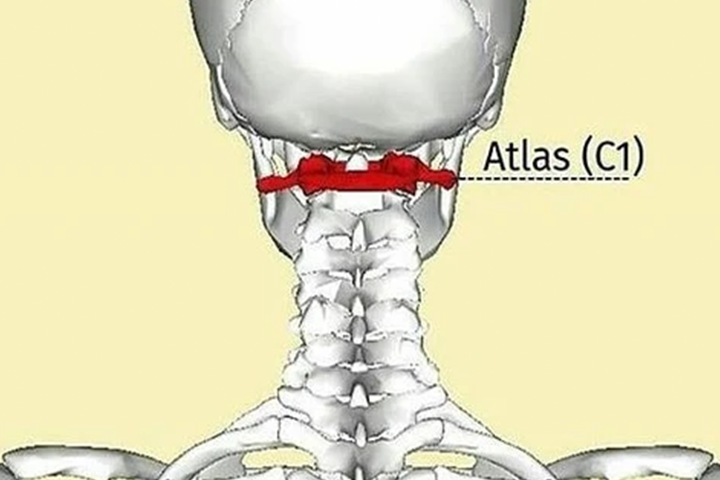

(The Atlas (C1) in the human spine.)

Pat Geraghty, inventor of the Atlas-C1, is pictured with Professor Ed Yee from the University of Maryland Carey Law School’s Intellectual Property Department during a photo session for The Catalyst magazine. This university publication celebrates achievements in technology, research, and innovation, inviting contributors to share their personal success stories.

The Patented Atlas-C1 , the #1 and Only Guitar Headstock Support and Protection Tool in the World

Click and Drag Image to Turn
